Technical specifications
Mains voltage:230VAC
Power Factor:>0.98
Efficiency:>94%
Operating Frequency:28-60kHz
Starting:Preheat

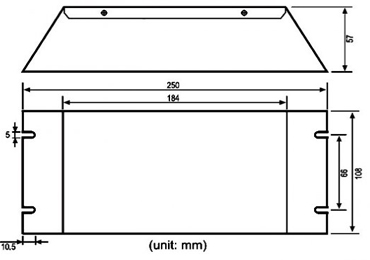

Dimensions:250*108*57mm
Lamp status indication via LED indication
Green LED:Lamp on
Red LED:Lamp fault
Lamp status forwarding
Potential free relay contacts for lamp on/lamp fault..

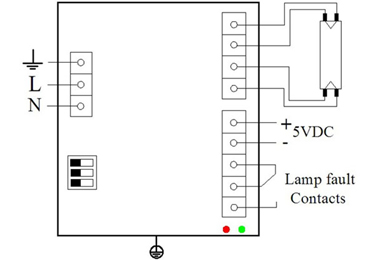

Installation requirement
Wire Gauge:0.5-1.0mm2
Relay contacts:potential free,
Load:50¡500mA at 24¡230V AC;
???? 50¡500mA at 5¡60V DC
Mounting restrictions
Disconnect Input Power Before Installing or Servicing.
Ballast Case must Be Grounded.
Don¡¯t short any two wires of the four outputs.
Features
PWM dimmable function:
The lamp power can be adjusted from 60% to 100%.
?
Type |
Input Voltage(V) |
Input Power(W) |
Input Current(A) |
Power Per Lamp(W) |
Lamp Current(A) |
Weight(kg) |

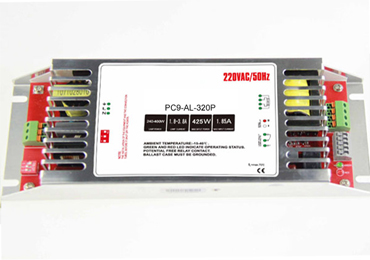

PC9-AL-320P |
198-264 |
341 |
1.49 |
240-325 |
1.8-2.2 |
0.83 |
|
