Part Number |
Warranty |
Length |
Electrical |
UV-C
Watts |
Output
¦ÌW/cm2
@ 1 Meter |
Fresh-Aire UV Product |

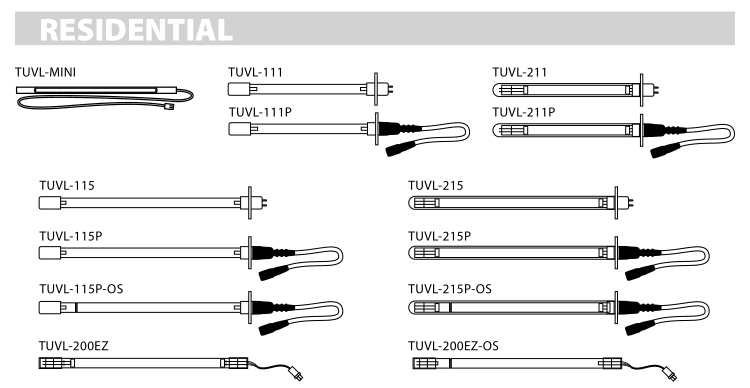

RESIDENTIAL |
|
|
|
|
|
|
TUVL-MINI |
1 Year |
9¡± |
5 mA, 4W |
1.0 |
10 |
Mini UV |
TUVL-111 |
1 Year |
9.75¡± |
425 mA, 17W |
5.7 |
57 |
APCO RT |
TUVL-111P |
1 Year |
9.75¡± |
425 mA, 17 W |
5.7 |
57 |
APCO Mag11 |
TUVL-211 |
2 Year |
9.75¡± |
425 mA, 17 W |
5.7 |
57 |
APCO RT |
TUVL-211P |
2 Year |
9.75¡± |
425 mA, 17 W |
5.7 |
57 |
APCO Mag11 |
TUVL-115 |
1 Year |
14.5¡± |
425 mA, 17 W |
5.7 |
57 |
APCO |
TUVL-115P |
1 Year |
14.5¡± |
425 mA, 17 W |
5.7 |
57 |
AHU Series 1, Blue-Tube, APCO Mag15 |
TUVL-115P-OS |
1 Year |
14.5¡± |
425 mA, 17 W |
5.7 |
57 |
AHU Series 1, Blue-Tube |
TUVL-215 |
2 Year |
14.5¡± |
425 mA, 17 W |
5.7 |
57 |
APCO |
TUVL-215P |
2 Year |
14.5¡± |
425 mA, 17 W |
5.7 |
57 |
AHU Series 1, Blue-Tube, APCO Mag15 |
TUVL-215P-OS |
2 Year |
14.5¡± |
425 mA, 17 W |
5.7 |
57 |
AHU Series 1, Blue-Tube |
TUVL-200F-OS |
2 Year |
14.25¡± |
425 mA, 17 W |
5.7 |
57 |
Purity |

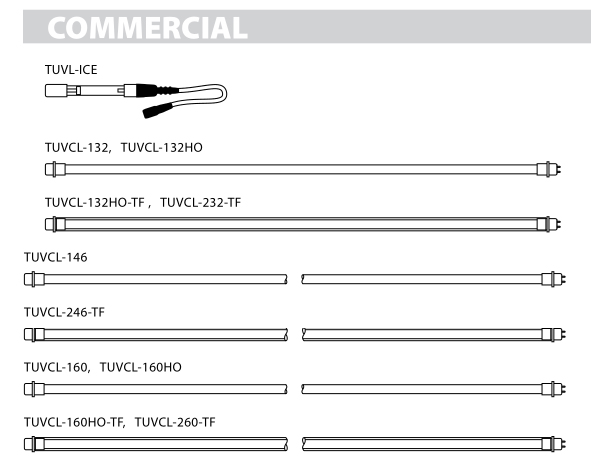

COMMERCIAL |
|
|
|
|
|
|
TUVL-ICE |
2 Year |
6.75¡± |
400 mA, 10 W |
1.5 |
15 |
ICE UV |
TUVL-200EZ |
1 Year |
14.25¡± |
425 mA, 17 W |
5.7 |
57 |
Tight-Fit Kit |
TUVL-200EZ-OS |
1 Year |
14.25¡± |
425 mA, 17 W |
5.7 |
57 |
Tight-Fit Kit |
TUVCL-132 |
1 Year |
32¡± |
400 mA, 44 W |
17 |
165 |
Commercial Series 32¡± |
TUVCL-132HO |
12000 Hr |
32¡± |
800 mA, 80 W |
33 |
300 |
Commercial Series 32¡± High Output |
TUVCL-132HO-TF |
12000 Hr |
32¡± |
800 mA, 80 W |
33 |
300 |
Commercial Series 32¡± High Output |
TUVCL-232-TF |
2 Year |
32¡± |
400 mA, 44 W |
17 |
165 |
Commercial Series 32¡± |
TUVCL-146 |
1 Year |
46¡± |
400 mA, 54 W |
19 |
190 |
Commercial Series 46¡± |
TUVCL-246-TF |
2 Year |
46¡± |
400 mA, 54 W |
19 |
190 |
Commercial Series 46¡± |
TUVCL-160 |
1 Year |
60¡± |
400 mA, 68 W |
28 |
250 |
Commercial Series 60¡± |
TUVCL-260-TF |
2 Year |
60¡± |
400 mA, 68 W |
28 |
250 |
Commercial Series 60¡± |
TUVCL-160HO |
12000 Hr |
60¡± |
800 mA, 130 W |
52 |
400 |
Commercial Series 60¡± High Output |
TUVCL-160HO-TF |
12000 Hr |
60¡± |
800 mA, 130 W |
52 |
400 |
Commercial Series 60¡± High Output |
Lamp Type
2 Year lamps feature a shielded quartz hot filament. All others (except TUVL-MINI) have an unshielded quartz hot filament
Operating Temperature
Fresh-Aire UV lamps are designed to operate between 35¡ã to 185?¡ã F, 100% humidity.
UV Spectrum
All lamps are 100% 254nm UV-C, except those designated -OS, which are 90% 254nm - 10% 185nm UV-C
Teflon? Coating
Lamps designated with -TF feature a protective Teflon? coating.
|
