Technical specifications
Mains voltage:110/240VAC
Mains Frequency£º50/60Hz
Power Factor:>0.98
Efficiency:>90%
Operating Frequency:40-80kHz
Starting:Preheat

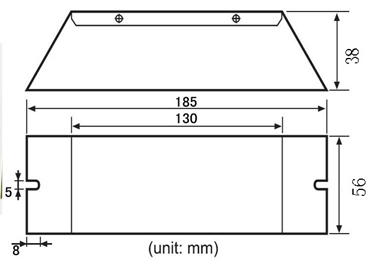

Dimensions:185*56*38mm
Lamp status indication via LED indication
Green LED:Lamp on
Red LED:Lamp fault
Lamp status forwarding
Potential free relay contacts for lamp on/lamp fault..

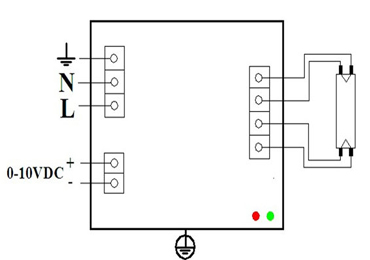

Installation requirement
Wire Gauge:0.5-1.0mm2
Mounting restrictions
Disconnect Input Power Before Installing or Servicing.
Ballast Case must Be Grounded.
Don¡¯t short any two wires of the four outputs.
Features
0~10V dimmable function:
The lamp power can be adjusted from 5% to 100%.
Applications
Air purification
Industrial water treatment
Kitchen purification
Type |
Input Voltage(V) |
Input Power(W) |
Power Per Lamp(W) |
Lamp Current(A) |
Weight(kg) |

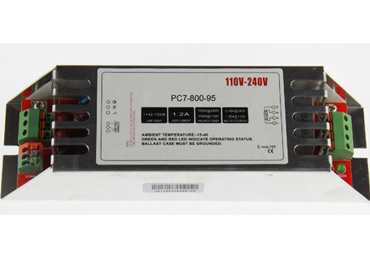

PC7-800-95 |
108 |
1.0A@110V
0.46A@240V |
75-95 |
0.75-0.85 |
0.30 |
|
