Technical specifications
Mains voltage:230VAC
Mains Frequency£º50/60Hz
Power Factor:>0.98
Efficiency:>94%
Operating Frequency:28-80kHz

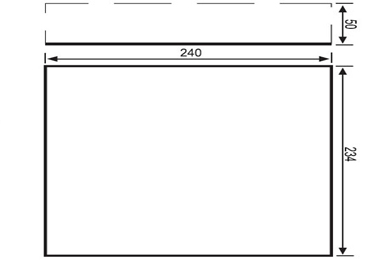

Dimensions:240*234*50mm
Lamp status indication via LED indication
Green LED:Lamp on
Red LED:Lamp fault

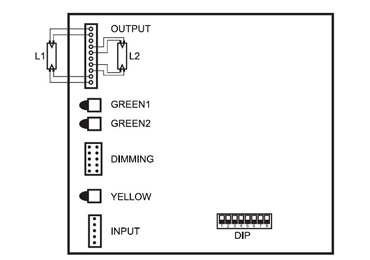

Installation requirement
Wire Gauge:1.5-2.5mm2
Max.cable length between ballasts and lamp:5m
Mounting restrictions
Disconnect Input Power Before Installing or Servicing.
Ballast Case must Be Grounded.
Don¡¯t short any two wires of the four outputs.
Features
Starting:Preheat
4~20mA dimmable function:
The lamp power can be adjusted from 60% to 100%.
Applications
All areas of applications include UV lamps
Municipal water treatment
Industrial water treatment
Water injection for oilfield
More information,please refer to the manual
?
Type |
Input Voltage(V) |
Input Power(W) |
Input Current(A) |
Power Per Lamp(W) |
Lamp Current(A) |
Weight(kg) |
PC02-AL-2/400 |
198-305 |
852 |
3.71A@230V |
240-400 |
1.8-4.8 |
2.2 |
|
