Technical specifications
Mains Voltage:110/240VAC
Mains Frequency:50/60Hz
Power Factor:>0.98
Efficiency:>92%
Operating Frequency:40-60kHz

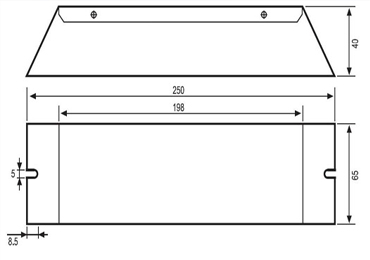

Dimensions:250*65*45mm
Lamp status indication via LED indication
Green LED:Lamp on
Red LED:Lamp fault

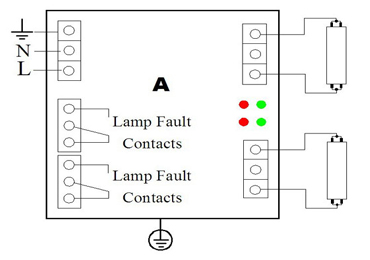

Lamp status forwarding
Potential free relay contacts for lamp on/lamp fault.
Installation requirement
Wire Gauge:0.5-1.0mm2
Max.cable length between ballasts and lamp:5m
Relay contacts:potential free,load:
50¡500mA at 24¡230VAC;50¡500mA at 5¡60VDC
Mounting restrictions
Disconnect Input Power Before Installing or Servicing.
Ballast Case must Be Grounded.
Don¡¯t short any two wires of the four outputs.
For applications with less than one
Switch-on cycle per day
(other otherwise preheat start ballasts are recommended)
Lamp filament must be suitable for instant start
operation,need confirm with lamp manufacturer.
Features
Starting:Instant
Applications
All areas of applications include UV lamps
Air purification
Industrial water treatment
Kitchen purification
Type |
Input Voltage(V) |
Input Power(W) |
Input Current(A) |
Power Per Lamp(W) |
Lamp Current(A) |
Weight(kg) |
PB8-425-2/75 |
99-264 |
93-175 |
0.77A@230V |
21-79 |
0.39-0.43 |
0.52 |
|
