Technical specifications
Mains Voltage:230VAC
Mains Frequency:50/60Hz
Power Factor:>0.55
Efficiency:>90%
Operating Frequency:40-60kHz
Starting:Rapid
Dimensions:250*30*20mm
Installation requirement
Wire Gauge:0.5-1.0mm2
Mounting restrictions
Disconnect Input Power Before Installing or Servicing.
Ballast Case Must Be Grounded.

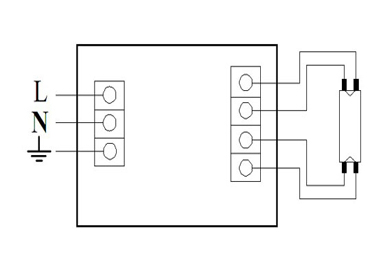

DonĄ¯t short any two wires of the four outputs.
Type |
Input Voltage(V) |
Input Power(W) |
Input Current(A) |
Power Per Lamp(W) |
Lamp Current(A) |
Weight(kg) |

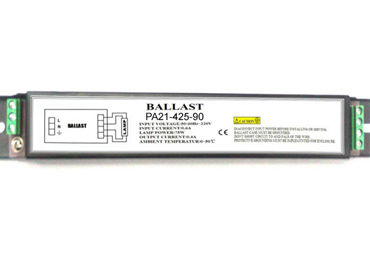

PA21-425-90 |
198-264 |
90 |
0.7A@230V |
41-79 |
0.39-0.43 |
0.14 |
|
