Technical Specifications
Mains Voltage: 110/240VAC
Mains Frequency: 50/60Hz
Power Factor: >0.98
Efficiency: >92%
Operating Frequency: 40-60KHz
Dimensions: 200*64*29mm
Installation Requirement
Wire Gauge: 0.5-1.0mm2
Max. cable length between ballasts and lamp: 5m
LED specification: VF=1.8-3.6V IF=5-20mA
(When it¡¯s necessary, series current limiting resistor is needed.)
Mounting Restrictions
Disconnect Input Power Before Installing or Servicing.
Ballast Case Must Be Grounded.
Don¡¯t short any two wires of the four outputs.
Features
Starting: Preheat
Lamp status indication via DC signal output (Connected LED Requirement).
DC 5V¡À5% £¨5mA£©: lamp on.
DC 0V: lamp fault or no lamp.
Applications
All areas of applications include UV lamps.
Air purification
Industrial water treatment
Kitchen purification
Type |
Input Voltage
(V) |
Input
Power
(W) |
Input Current (A) |
Power Per Lamp
(W) |
Lamp Current (A) |
Weight (kg) |

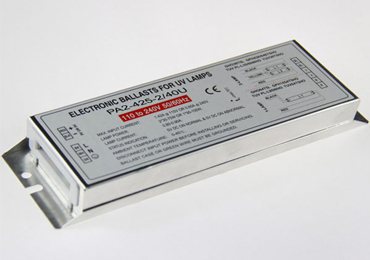

PA2-425-2/40U |
99-264 |
47-91 |
0.84A@110V
0.38A@240V |
1*48-79
2*21-41 |
0.39-0.43 |
0.42 |
|
